Product Description
Cartridge / Stylus
ORTOFON CONCORDE
NIGHTCLUB MK II E
Concorde Nightclub MKII
Following in the footsteps of the legendary Nightclub series, the re-engineered Nightclub MkII boasts numerous sonic improvements in both club and studio settings. The Nightclub MkII offers increased output voltage for powerful, energetic sound and enhanced performance from integrated phono preamps such as the ones found in DJ mixers. Superb sound quality!Â
Club DJ and studio workers believe the Nightclub MkII to be an absolute high-end cartridge. It is indeed a no-nonsence performer with fascinating musical resources. Its output is superb with a frequency response rating high enough to compare Nightclub MkII to any audiophile cartridge. The special elliptical stylus guarantees sound with insignificant scratching.
Technical specifications (taken from box):
Output voltage at 1,000 Hz, 5 cm.sec.: 8 mV
Frequency response: 20-20,000 Hz ±1,5 dB
Tracking ability at 315 Hz at recommended: 80 µm
Stylus type: Special Elliptical
Tracking force recommended: 3.0 g (30 mN)
Cartridge weight: 18,5 g
Options:

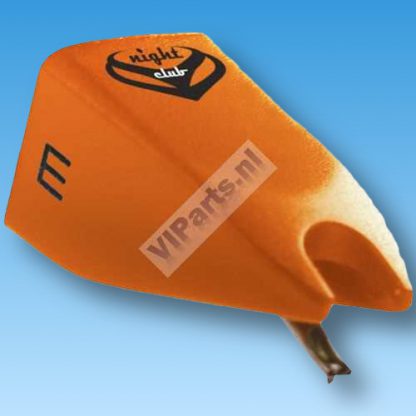

Seperate stylus:
ORTOFON NIGHTCLUB MK II E => TONAR 6828 OR*
(EAN 5705796140330)
*Available as long as in stock at my supplier!
Cartridge with stylus:
TONAR REFERENCE CODE: 9370 OR*
(EAN 5705796031409)
*SOLD OUT!
Cartridge with stylus + extra spare stylus:
TONAR REFERENCE CODE:Â 9383 OR*
*SOLD OUT!
Twin set (2 complete cartridges):
TONAR REFERENCE CODE: 9458 OR*
(EAN 5705796031423)
*LAST ONE AVAILABLE!!!
Cartridge with stylus for OM mounting under a headshell:
TONAR REFERENCE CODE:Â 9442 OR*
*SOLD OUT!
Additional information from ORTOFON:
Output voltage at 1000Hz, 5cm/sec. – 8 mV
Channel balance at 1kHz – 1,5 dB
Channel separation at 1kHz  – 23 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB –Â Â 20-22.000 Hz
Frequency response – 20-20.000 Hz +/- 1,5 dB
Tracking ability at 315 Hz at recommmended tracking force – 80 μm
Compliance, dynamic lateral –  7 μm/m N
Stylus type – Special Elliptical
Stylus tip radius – r/R 13/25 μm
Tracking force range – 2,0-5,0 g (20-50 mN)
Tracking force recommended – 3,0 g (30 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 1.000 Ohm
Internal inductance – 580 mH
Recommended load resistance  – 47 kOhm
Recommended load capacitance – 200-600 pF
Cartridge weight – 18,5 g
Replacement styli units – Nightclub MkII, Nightclub E, Nightclub S
Meanings of additional letters to the TONAR code (when added to the number):
1st: D for Diamond / S for Sapphire
2nd: E for Elliptical/ M for Mono / N for Normal (78 RPM) / S for Stereo (33/45 RPM)
Other codes:
ES for Diamond Line Contact
HYPEL for Diamond Hyper Elliptical (BI-Radial)
SHIBA for SHIBATA cut
D-SAS for Diamond Naked Block D-SAS cut
OR for ORIGINAL items (some packed by TONAR)*
*ORIGINAL ORTOFON CARTRIDGES ONLY AVAILABLE IN MY WEBSHOP VIParts.NL
