Product Description

B-TECH

BT-26-MD

Phono / Microphone

Pre-Amplifier

BT26 With Parallel Outputs Designed for use with any amplifier without a phono aux input IC technology for low noise, high gain pre-amplification Suitable for use with turntables with magnetic cartridges Also suitable for use with stereo and mono microphones CE Certified Power supply included (GB plug + EU adaptor plug) Strong, stylish metal casing
Features: Designed for use with any amplifier without a phono aux input IC technology for low noise, high gain pre-amplification Suitable for use with turntables with magnetic cartridges Also suitable for use with stereo and mono microphones CE Certified

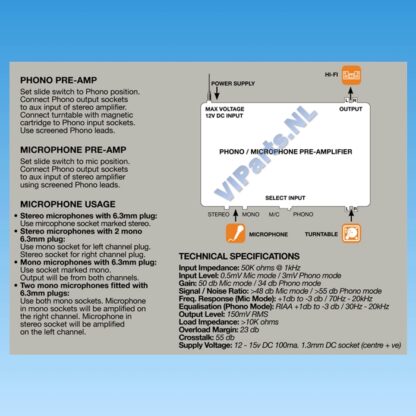

TECHNICAL SPECIFICATIONS:

Input Impedance: 50 k-Ohms @ 1 kHz

Input Level: 0.5 mV Mic mode / 3 mV Phono mode

Gain: 50 dB Mic mode / 34 dB Phono mode

Signal / Noise Ratio: >48 dB Mic mode / >55 dB Phono mode

Freq. Response (Mic Mode): +1 dB to -3 dB / 70 Hz – 20 kHz

Equalisation (Phono Mode): RIAA +1 dB to -3 dB / 30 Hz – 20 kHz

Output Level: 150 mV RMS

Load Impedance: >10 k-Ohms

Overload Margin: 23 dB

Crosstalk: 55 dB

Supply Voltage: 12 – 15 V DC – 100 mA – 1.3 mm DC socket (centre + ve)

Additional information (click to download PDF):

-Product Specification Sheet:

>BT26 Spec Sheet

-Assembly Leaflet:

>BT26 – Assembly Leaflet



TONAR Reference Code: 3521 OR

OR for ORIGINAL Items (Some packed by TONAR)
